Product Features:
Anchoring clamp PA-1500 is self-adjusting ,designed to anchor ADSS optical fiber cable transmimssion lines.
The ADSS tension clamp consists of self-adjusting palstic wedges ,which clamp the optical cable without damaging. Wide range of gripping capacities archived by different types of wedges ADSS anchor clamp.
The stainless steel bail allows installations of clamps on a pole brackets or hooks at seaside area.
ADSS tension clamp PA-3000 available either separately or together as assembly with ADSS fiber optic cable brackets and stainless steel band.
Product Detail:
| Product code | Bail Length,mm | Cable Size,mm | MBL,KN | Weight ,KG |
| PA-1500 | 530 | 8-12 | 15 | 0.38 |

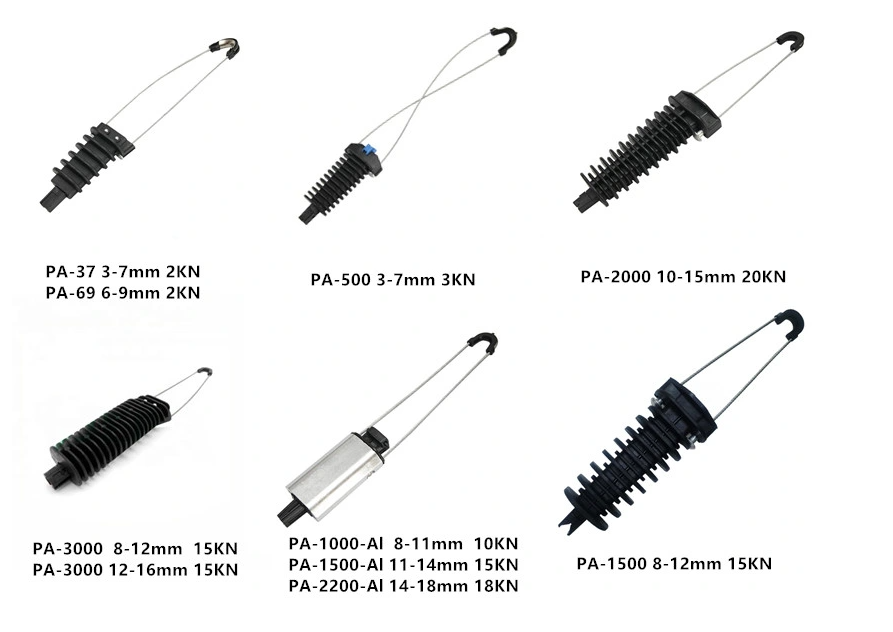

Similar Products:
| Product Item | Type | Cable Size,mm | MBL,KN |
| ADSS anchor clamp | PA-500 | 3-7 | 3 |
| PA-37 | 3-7 | 2 | |
| PA-69 | 6-9 | 2 | |
| PA-1500 | 8-12 | 15 | |
| PA-2000 | 10-15 | 20 | |
| PA-1000-AL | 8-11 | 10 | |
| PA-1500-AL | 11-14 | 15 |

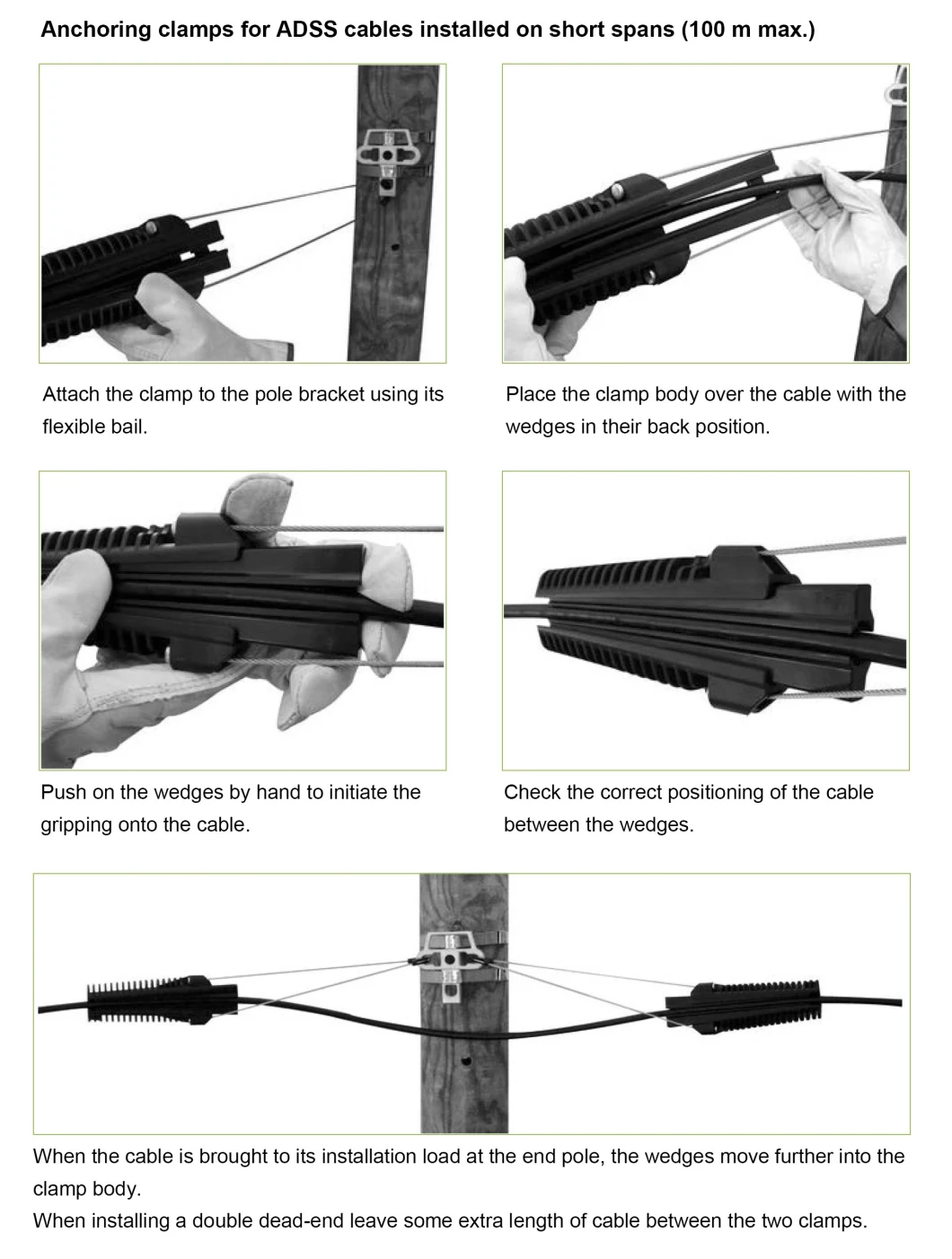

Installaration Guide:
