Aluminum Clad Steel Series Stranded Wire
ACS cable (Aluminium Clad Steel Wire Stranded conductor)meets or exceeds the requirements of all international standards like ASTM,IEC,DIN,BS,AS,CSA,NFC,SS,etc. in addition, we also accept OEM service to meet your special request.
Construction:
Aluminium Clad Steel wire (ACS) is a high strength steel wire with a thick aluminium coating.ACS wire consists of a central steel core with a layer of high conductivity aluminium extruded over it. The aluminium layer forms a seamless metallurgical tie with the steel wire to guarantee permanent bonding during rewinding and stranding.The aluminium layer thickness is atleast 10% of the wire radius and approximately 25% of the cross-sectional area. Conductivity is proportional to the aluminium layer thickness. Conductivities ranging from 20% to 40% ACS are available.
Aluminium Clad Steel stranded is a composite Concentric-lay-stranded conductors made of aluminum-clad steel wires. ACS cable is well known for its combination of corrosion resistance, high strength and superior electrical conductivity. These properties make it an excellent choice either as overhead static wire (ground wire) It can also be used as core in ACSR conductors.

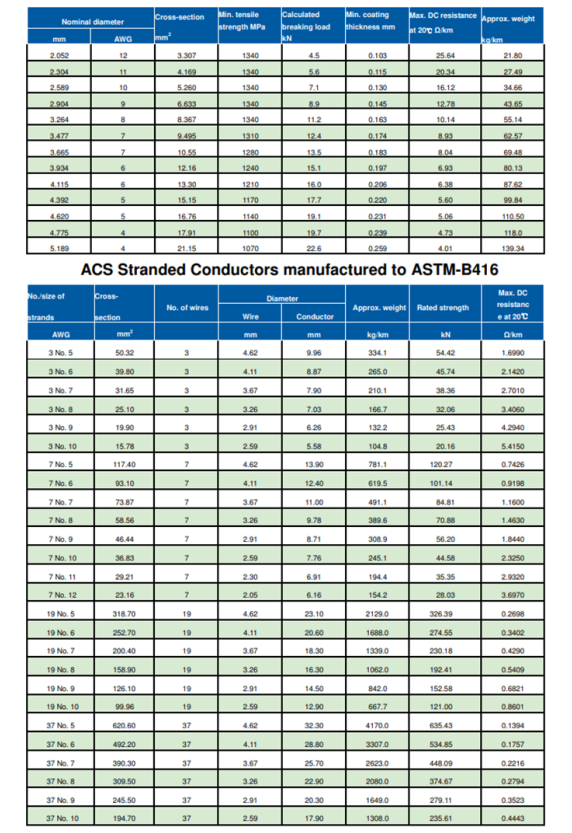

Conductivity: ACS 20.3% , 27% ,30% ,40% .
Tensile Strength : 1,340 N/min2max,1,080 N/min2max,880 N/min2max,auf nachfrage 680 n/min2.
Application:
ACS cable is Commonly used for overhead shield wire in high corrosion areas such as industrial, seashore, and desert environments. Used in guy or messenger wire where long life and superior corrosion resistance is desired.
