GJYXCH FTTH Drop Cable

FTTH outdoor fiber optic cable are used inside buildings or houses. In the center of the cable is the optical communication unit, with the two parallel non-metical enhanced FRP/Metal/KFRP as the strength member, and surrounded with the LSZH jacket.

Place Of Origin: Guangdong, China

Product Name: FTTH Drop Fiber Optic Cable

Acket Material: PVC/LSZH

Cores Number: 1-12cores

Fiber Type: G652D, G655,G657A,G657B

Messenger Size: 0.5, 1.0, 1.2mm Optional

Strength Member: Steel Wire, FRP, KFRP

Get a Free Quotation Whatsapp

Product Detail

Packaging & Shipping

Product Tags

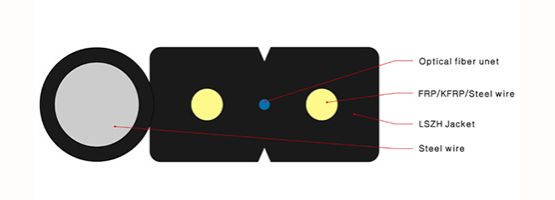

Cable Cross -Section:

DESCRIPTION:

The cable consists of optical communication unit, strength member, self-supporting unit and outer sheath;
Optical communication unit includes fibers or tight buffer fibers;
Strength member can be metallic or Non-metallic according to customers’ demand.

Main Features:

1. GJYXCH Bow Type Drop Cable adopts the slight bending resistant fiber B6, ensure data transmission.

2. Small size, light weight, simple structure, easy to strip for its special groove design and no need any tool, easy to install.

3. Two parallel phosphated steel wires as strength members have excellent crush and tensile resistance.

4. Self-supporting steel wire strength component withstand most part of tension.

5. Low smoke, non-halogen flame retardant outer sheath material.

Temperature Range: Operating Temperature: -20～+ 50℃.

Standard: Comply with standard YD/T 1997-2009, ICEA-596, GR-409, IEC 60794.

TECHNICAL DATA:

Parameters	Specifications
Fiber Core	1	2	4	6	8
Cable Dimension (mm)	(2.0±0.1) × (5.2±0.1)	(2.0±0.1) × (5.2±0.1)	(2.0±0.1) × (5.2±0.1)	(2.5±0.1) × (6.0±0.1)	(2.5±0.1) × (6.0±0.1)
Cable Weight (kg/km)	20	20.5	21	23	24
Self-supporting Messenger	1.0mm Steel / 1.2mm Steel/ 1.0mm FRP
Parallel Messenger	0.4mm Steel/ 0.45mm Steel/ 0.5mm Steel/ 0.5mm FRP
Tensile Strength (N) Long term	300
Tensile Strength (N) Short term	600
Crush(N/100mm) Long term	2200
Crush(N/100mm) Short term	1000
Bend Radius (mm) Static	15
Bend Radius (mm) Dynamic	30
Cable cut-off length	≤1260nm
Attenuation(+20℃)@1310nm	≤0.45 dB/km
Attenuation(+20℃)@1550nm	≤0.30 dB/km
Trans/Storage/Operating Temperature	-20℃~+60℃
Installation Temperature	-5℃~+50℃
Out sheath/Jacket	LSZH

Packing:

Our packaging box can not only achieve 7 layers but also can bear the weight of two adults，The picture below is sent by our customer.

FTTH solution

Previous: FTTH Drop Fiber Optical Cable 1 Core G657A with FRP/KFRP Strength member LSZH Jacket

Next: Flat Fiber Optic Drop Cable

1-5KM per roll. Packed by steel drum . Other packing available according to client`s Request.

Sheath Mark:

The following printing(white hot foil indentation)is applied at 1meter intervals. a. Supplier: Guanglian or as customer required; b. Standard Code(Product Type, Fiber Type,Fiber Count); c. Year of manufacture: 7 years; d. Length marking in meters.

Port：

Shanghai/Guangzhou/Shenzhen

Lead Time：

Quantity(KM)	1-300	≥300
Est.Time(Days)	15	To be begotiated!

Note:

The Packing standard and details as above is estimated and final size & weight shall be confirmed before shipment.

The cables are packed in carton, coiled on Bakelite & steel drum. During transportation, right tools should be used to avoid damaging the package and to handle with ease. Cables should be protected from moisture,kept away from high temperature and fire sparks,protected from over bending and crushing,protected from mechanical stress and damage.
