Simplex LC/UPC 50/125 Multimode Fiber Optic Pigtail, 0.9 mm PVC Outer Jacket
Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.
Product Specification
| onnector A | LC | Connector B | Unterminated |
| Fiber Mode | 50/125 μm | Fiber Count | Simplex |
| Fiber Grade | Bend Insensitive | Minimum Bend Radius | 7.5 mm |
| Polish Type | UPC | Cable Diameter | 0.9 mm |
| Cable Jacket | PVC | Jacket Color | Aqua |
| Wavelength | 850 nm/1300 nm | Durability | 500 Times |
| Insertion Loss | ≤0.3 dB | Interchangeability | ≤0.2 dB |
| Return Loss | ≥20 dB | Vibration | ≤0.2 dB |
| Operating Temperature | -40~75°C | Storage Temperature | -45~85°C |

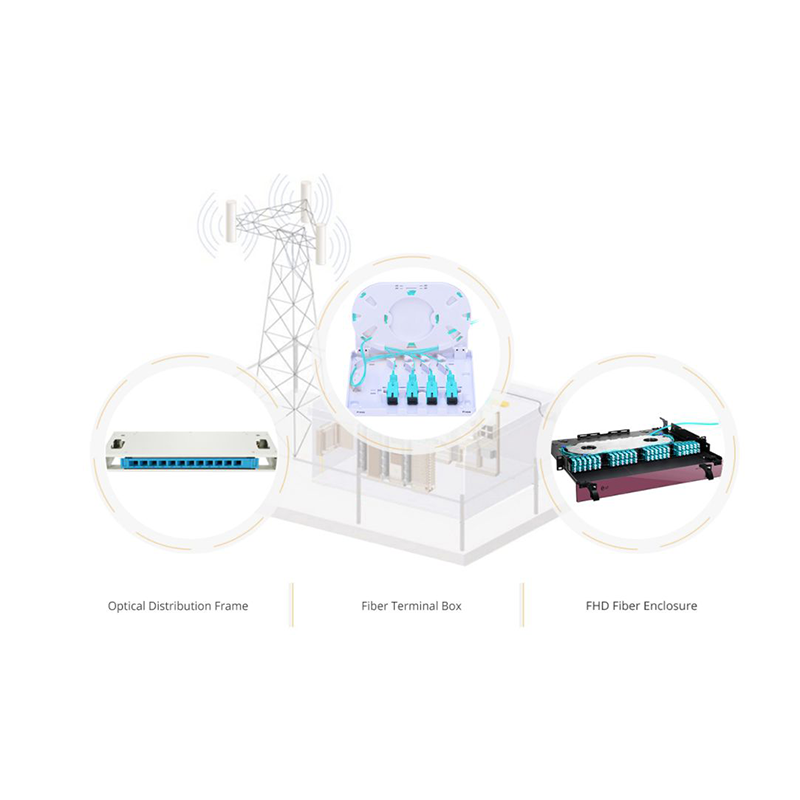

A Variety of Applications for Different Equipments
Widely used in CATV, FTTH/FTTX, telecommunication networks, premise installations, data processing networks, LAN/WAN network, and more.

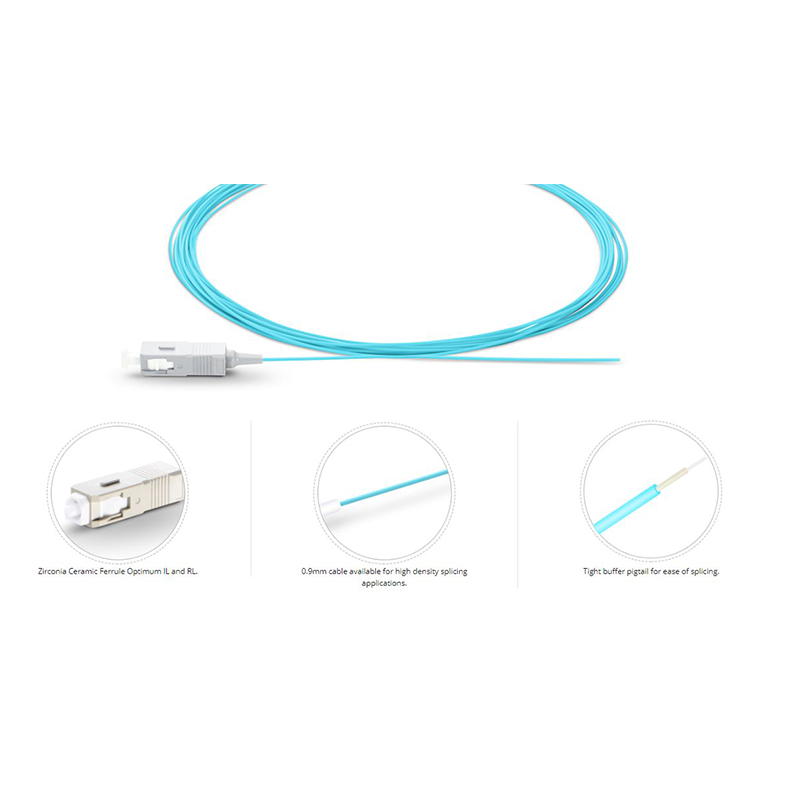

Fiber Optic Pigtail – Ideal for Splicing
It is utilized to achieve accurate mounting on precision alignment of fiber optical components.
