Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.
Product Specification
| Connector A | LC | Connector B | Unterminated |
| Fiber Mode | 9/125 μm | Fiber Count | Simplex |
| Fiber Grade | G.652.D | Minimum Bend Radius | 30 mm |
| Polish Type | UPC | Cable Diameter | 0.9 mm |
| Cable Jacket | PVC | Jacket Color | Yellow |
| Wavelength | 1310 nm/1550 nm | Durability | 500 Times |
| Insertion Loss | ≤0.3 dB | Interchangeability | ≤0.2 dB |
| Return Loss | ≥50 dB | Vibration | ≤0.2 dB |
| Operating Temperature | -40~75°C | Storage Temperature | -45~85°C |
A Variety of Applications for Different Equipments
Widely used in CATV, FTTH/FTTX, telecommunication networks, premise installations, data processing networks, LAN/WAN network, and more.

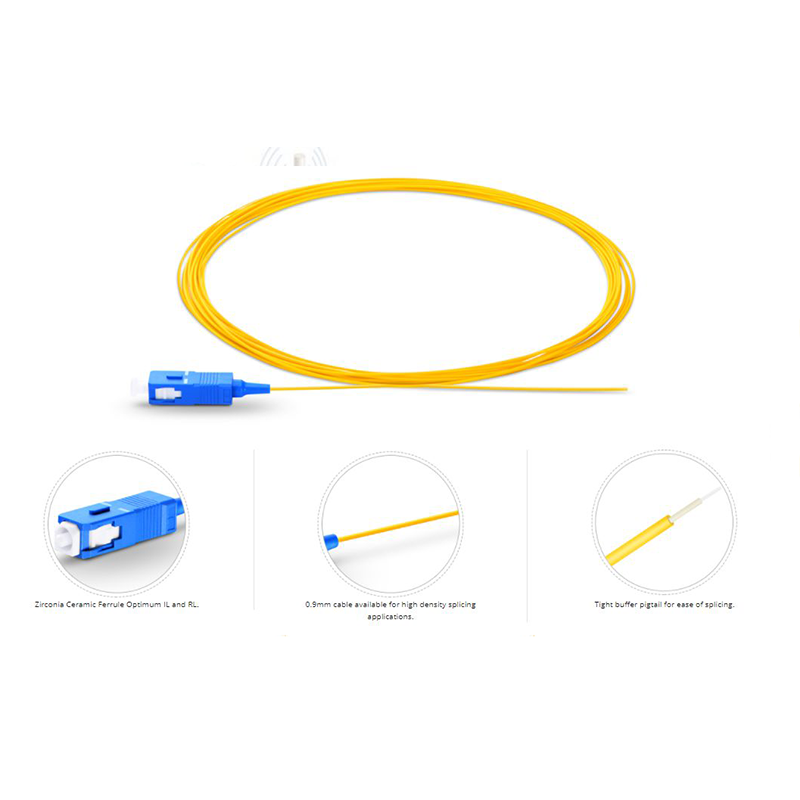

Fiber Optic Pigtail – Ideal for Splicing
It is utilized to achieve accurate mounting on precision alignment of fiber optical components.
