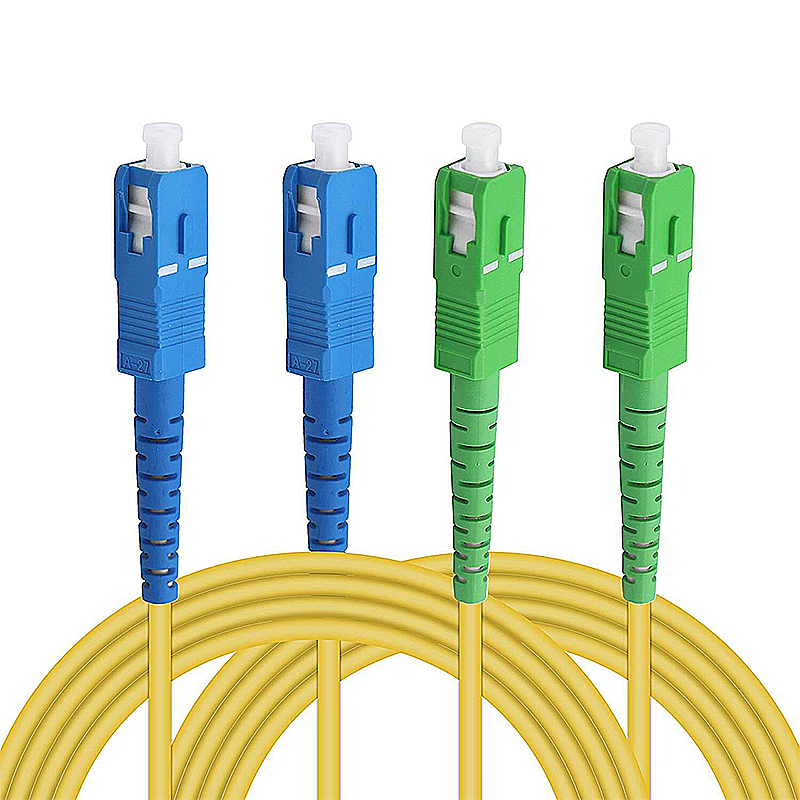

SC to SC SC/UPC-SC/APC-SM Singlemode Simplex Fiber Patch Cord

SC to SC SC/UPC-SC/APC-SM Singlemode Simplex Fiber Patch Cord

• SINGLE MODE SIMPLEX.2M SC/UPC-SC/APC-SM Singlemode fiber patch cable is specially designed for fast Ethernet, Fiber Channel,perfect for the demands of Fiber Professionals.
• FIBER CABLE DETAILS.Interface Model: SC/UPC-SC/APC Working Wavelength: 1310nm-1550nm Optical cable outer diameter: 3mm Jumper mode:single mode Minimum bending radius: 3.8cm Plug:Ceramic ferrule Light attenuation:Less than 1db Insertion and extraction times: greater than 1000 times Tensile strength 45kg Tensile strength: greater than or equal to 200N Pressure test: less than 0.1db.
• This sc to sc fiber patch cable is Low insertion loss, good inter-insertion performance.Interchangeability, temperature stability,repeatability,and return loss are good.Stable and reliable transmission in line with international IEC quality testing standards.
• HIGH QUALITY MATERIAL: The fiber optic jumper is made of environmental friendly PVC material, soft body but wearable.not fade, not broken and not easily deformed.Ceramic connectors ensure low signal loss, and high reliability.

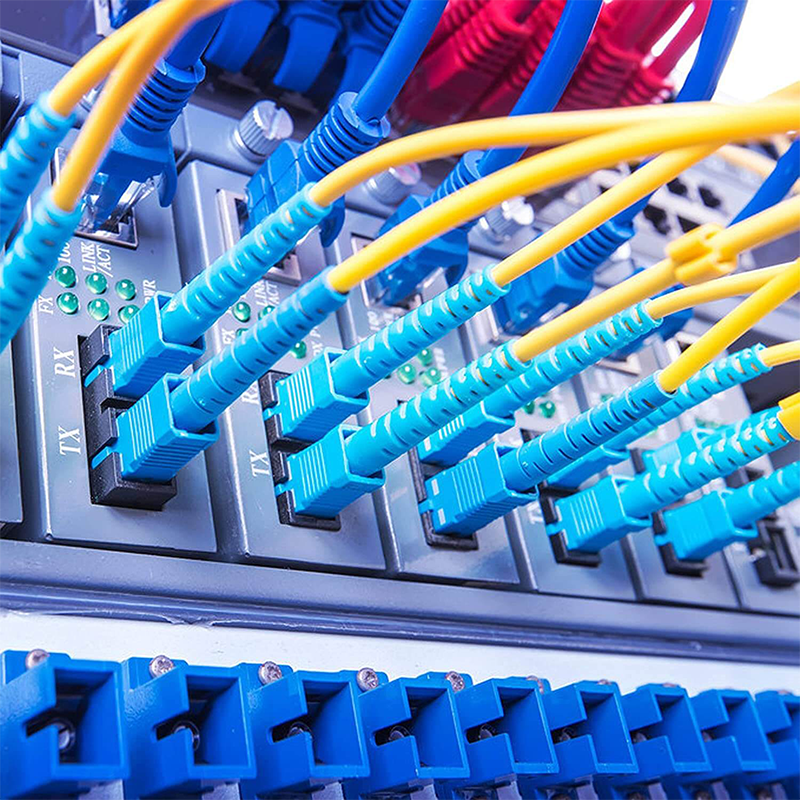

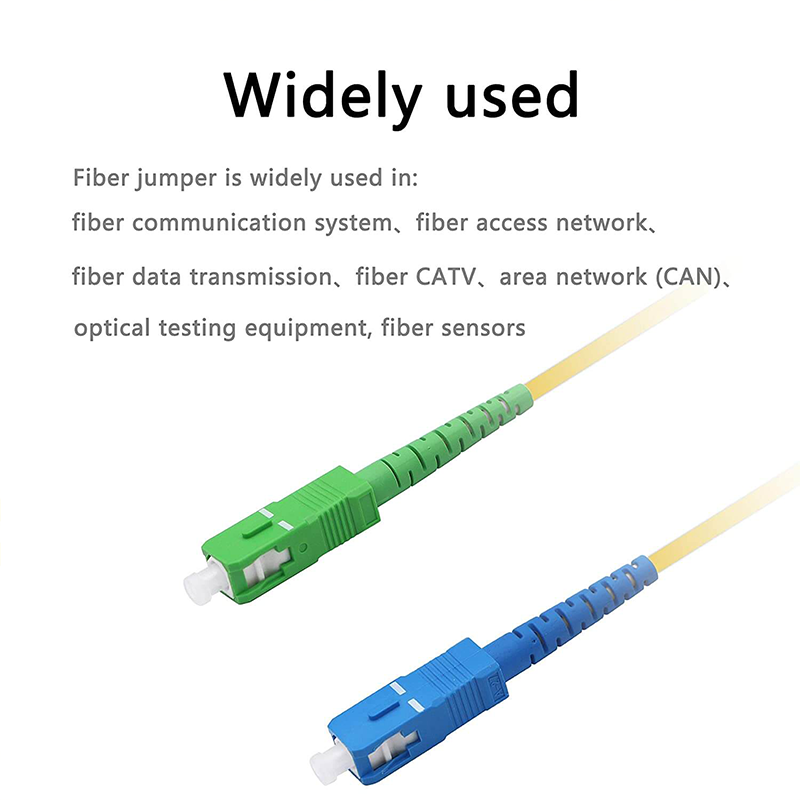

• USED WIDELY.Strong compatibility,Compatible with all standard fibre optic equipment and connectors, plug and play, can be used for various types of optical fiber LAN, optical fiber communication system, instruments,CATV.

Product Description

Color: Yellow SC/UPC-SC/APC-SM 2M/6.56ft
Optical fiber jumper means that both ends of the optical cable are equipped with connector plugs, which are used to realize the active connection of the optical path activity.

Features

Low insertion loss,
Good inter-insertion performance
Good interchangeability
Good temperature stability
Good repeatability
Large return loss
Stable and reliable transmission
Compliance with international IEC quality testing standards
Specifications

Interface model: SC/UPC-SC/APC
Operating wavelength: 1310nm-1550nm
Jumper length: 2M
Optical cable outer diameter: 3mm
Jumper mode: single mode
Minimum bending radius: 3.8cm
Jumper color: yellow
Plug: ceramic ferrule
Light attenuation : Less than 1db
Material: high-quality environmental protection PVC material

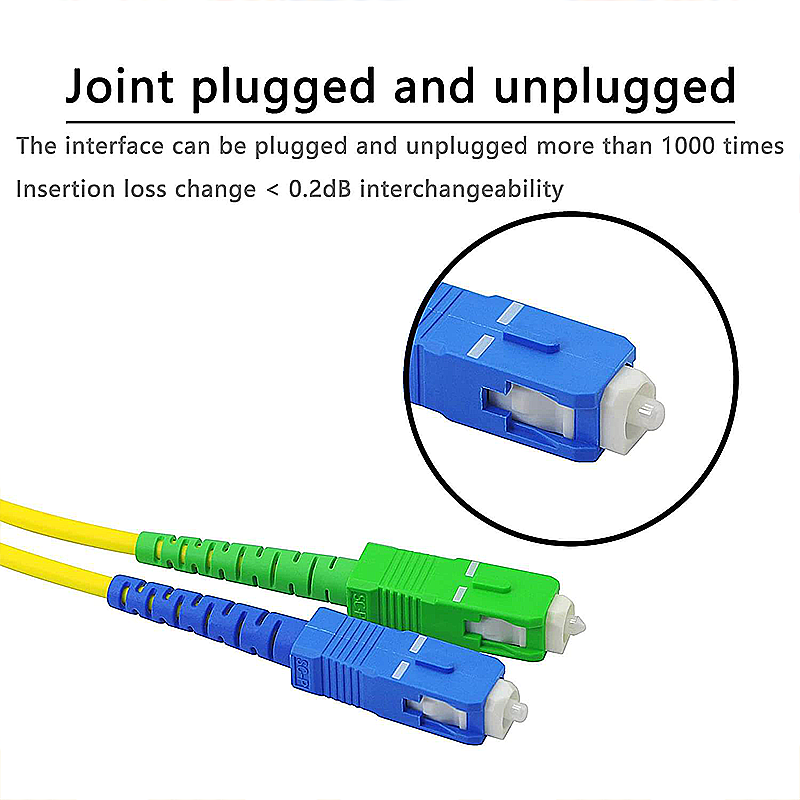

Insertion and extraction times: greater than 1000 times
Tensile strength 45kg
Tensile strength: greater than or equal to 200N
Pressure test: less than 0.1db.
